1.臥式驅動輪24V0.75KW,無須人工手推行走,輕松自如；

2.蓄電池24V170AH驅動行駛,白天使用,夜晚充電,自動跳轉；.

3.吊臂1900-2500可液壓伸縮.吊臂上升和下降；

4.支撐腿抽拉式可校正平衡. 自行走吊車可配合車間的行車使用,是車間良好的輔助工具；

5.行走系統24V, 上升下降380V50HZ三相電.非標型可據客戶要求訂制。

1.Horizontal driving wheel 24v0.75kw, no need to push in driving, easy and comfortable;

2.24V170AH driving battery power, use in day time, , intelligent battery couldrechargein night;

3.Arm reach 1900-2500mm, hydraulic extend and return, arm could be lift up and down;

4.Straddles are telescopic manually, and helps in balance correction. Crane could coordinatewith overhead crane in workshop, a nice assist tool in workshop;

5.Driving system 24v, lifting up and down by AC power, non-standard could be customized upon request.

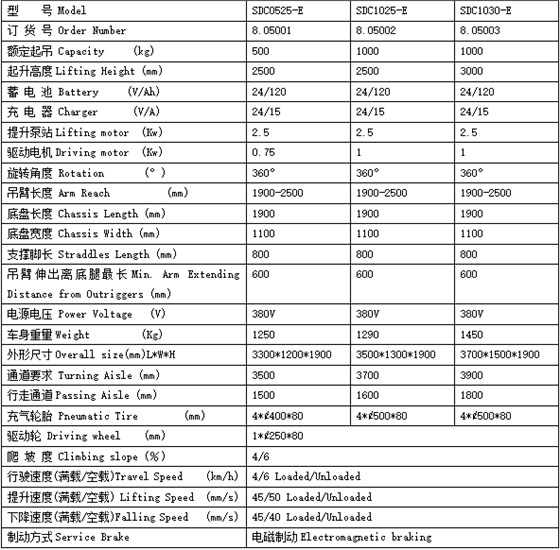

產品參數

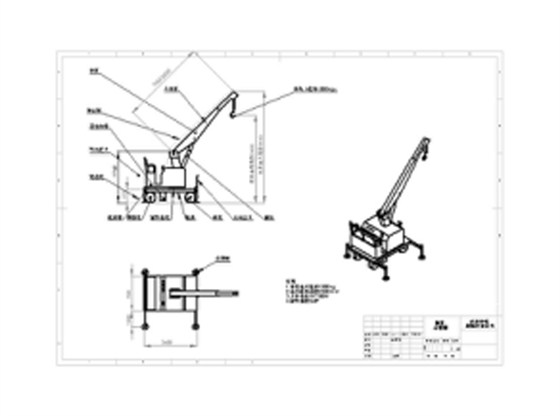

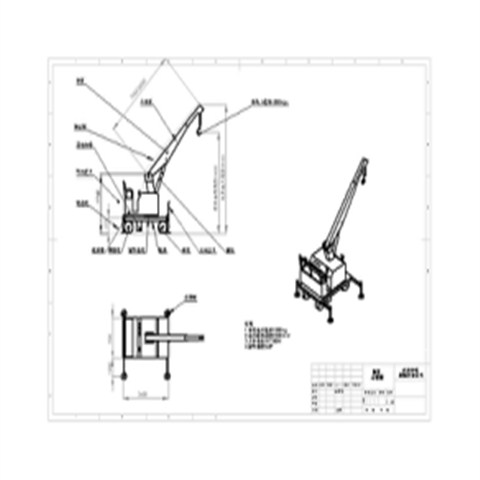

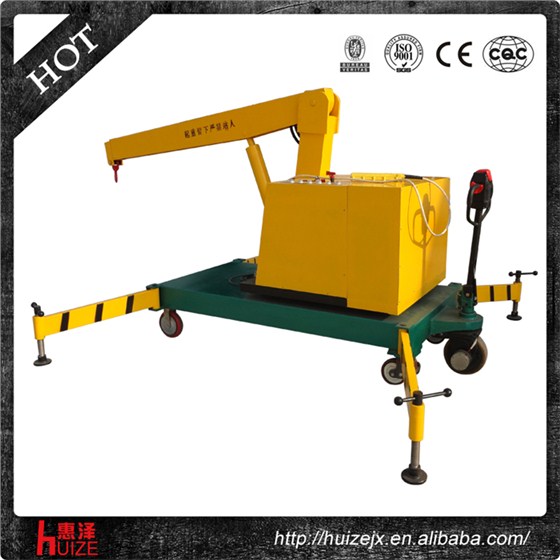

產品圖片

1.客戶收到的產品與訂貨產品型號不符。

售后說明

1.整車保修一年

2.整車鋼結構焊接斷焊或斷裂一年內正常保修（超載導致變形，變形不保修）

3.24小時到48小時內到達或解決

4.提供操作視頻講解更換配件

5.終身提供配件
